Plastic Pallets & Shuttle Rack Robots: Complete Cost & Buyer's Guide (2026)
Explore the costs associated with plastic pallets and shuttle rack robots, including factors influencing pricing and benefits for businesses.
- 1. What are plastic pallets — and who needs them?
- 2. HDPE vs PP: which material is right for you?
- 3. Plastic pallet cost breakdown (2025 pricing)
- 4. Plastic vs wooden pallets — total cost of ownership
- 5. What are shuttle rack robots?
- 6. Shuttle rack robot cost breakdown
- 7. ROI: when does automation pay off?
- 8. How to choose the right system for your warehouse
- Frequently asked questions
1. What are plastic pallets — and who needs them?
Plastic pallets are reusable load-bearing platforms made from high-density polyethylene (HDPE) or polypropylene (PP). Unlike wooden pallets, they do not absorb moisture, harbor insects, or splinter — making them the preferred choice in food production, pharmaceuticals, cold storage, and any operation subject to hygiene audits.
Food & Beverage
Non-porous surface prevents bacterial growth; FDA-compliant grades available.
Pharma & Medical
GMP-compliant, easy to sanitize, no wood splinter contamination risk.
Cold Chain / Freezer
Maintain structural integrity at temperatures down to −40 °C.
Closed-Loop Retail
Ideal for distribution centers with high pallet return rates.
2. HDPE vs PP: which material is right for you?
Choosing the wrong material is one of the most common — and costly — purchasing mistakes. Here is how HDPE and PP compare across the criteria that matter most.
| Criteria | HDPE | PP (Polypropylene) |
|---|---|---|
| Impact resistance | Excellent | Good |
| Temperature range | −40 °C to +80 °C | 0 °C to +100 °C |
| Chemical resistance | High | Medium-High |
| Weight | Heavier (~14–18 kg) | Lighter (~10–14 kg) |
| Typical price (standard) | $30–$50 | $20–$35 |
| Recyclability | High (#2 HDPE) | High (#5 PP) |
| Best for | Cold chain, outdoor, rough handling | Clean room, light-duty, cost-sensitive |
Tip: If your operation involves both freezer storage and high-impact forklift use, HDPE is almost always the better long-term investment, even at a higher upfront price.
3. Plastic pallet cost breakdown (2025 pricing)
Prices vary based on material, load capacity, entry-point design (2-way vs 4-way entry), and whether the pallet is rackable or floor-storage-only. The table below reflects current market pricing for standard 1200 × 1000 mm pallets.
| Pallet Type | Price Range (per unit) | Typical Use Case |
|---|---|---|
| Standard PP (4-way entry) | $20 – $35 | General warehousing, retail DC |
| Standard HDPE (4-way entry) | $30 – $50 | Cold chain, food production |
| Rackable PP pallet | $40 – $65 | Racking systems, shuttle robots |
| Rackable HDPE pallet | $50 – $80 | High-load racking, pharma |
| Nestable / stackable pallet | $25 – $45 | Return logistics, reduced storage footprint |
| Custom-designed pallet | $80 – $150+ | Automated lines, bespoke dimensions |
Bulk pricing typically applies at 100+ units, with discounts of 10–25% common at 500+ unit orders. Always confirm whether quoted prices include delivery, as freight costs for large pallet orders can add $2–$5 per unit.

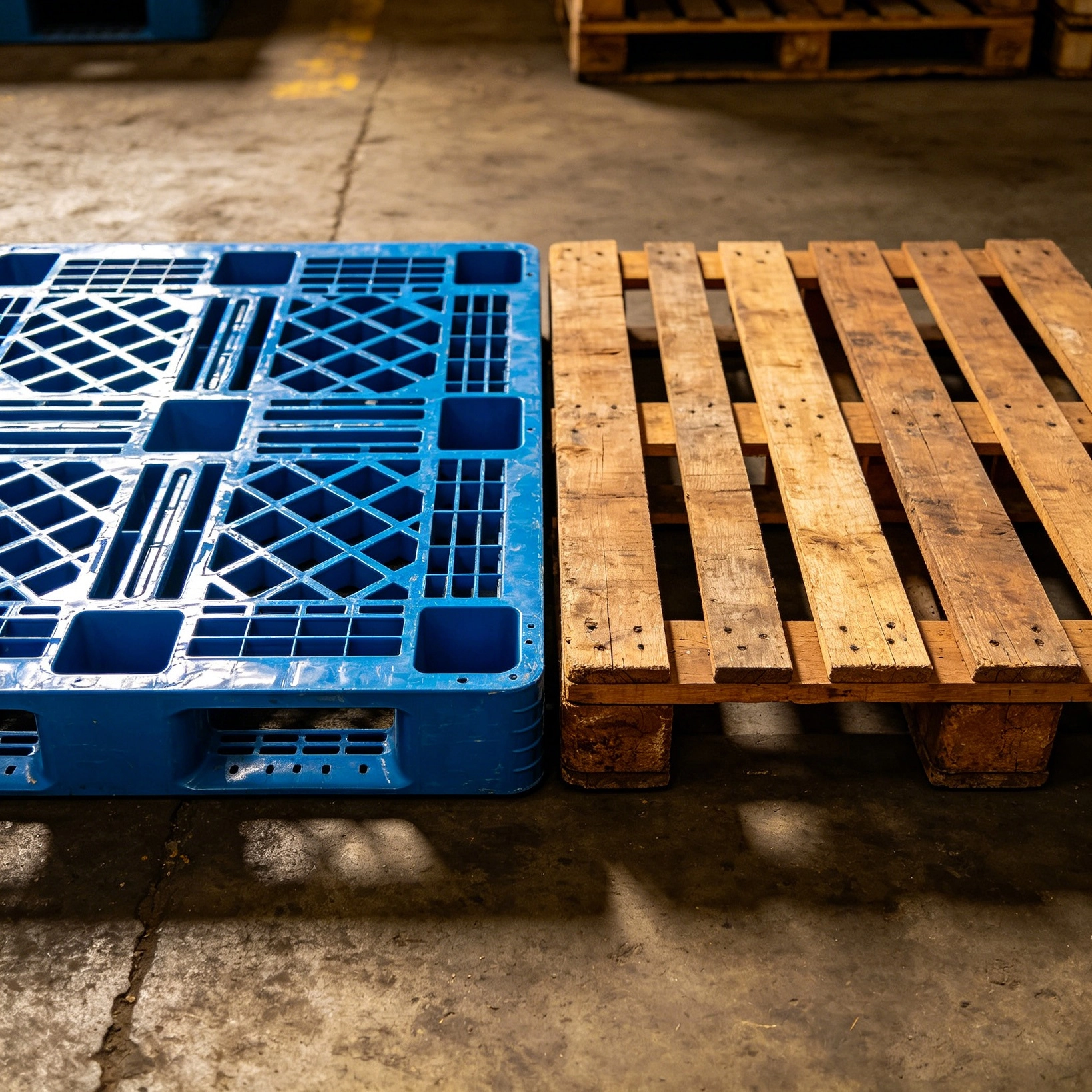

4. Plastic vs wooden pallets — total cost of ownership
Example: A wooden pallet at $10 replaced every 18 months costs ~$67 over 10 years. A plastic pallet at $40 lasting 8 years costs $50 over the same period — and that's before factoring in labor and hygiene savings.
5. What are shuttle rack robots?
Shuttle rack robots (also called pallet shuttles or AS/RS shuttles) are autonomous guided vehicles that travel within racking lanes to store and retrieve pallets. They form the core of high-density automated storage and retrieval systems (AS/RS) and are increasingly paired with warehouse management systems (WMS) for real-time inventory control.
Single-deep shuttle
Accesses one pallet per lane. Best for high-SKU, low-volume warehouses.
Multi-deep shuttle
Stores multiple pallets per lane in FIFO or LIFO order. Maximizes density.
AI-enabled shuttle
Learns traffic patterns, optimizes task sequencing, reduces energy usage.
Multi-level shuttle
Moves across rack levels using built-in lift. Eliminates separate stacker cranes.
6. Shuttle rack robot cost breakdown
| System Type | Estimated Cost | Notes |
|---|---|---|
| Basic single-deep shuttle unit | $15,000 – $30,000 | Per shuttle; rack infrastructure sold separately |
| Multi-deep shuttle system | $30,000 – $80,000 | Includes 1–2 shuttle units + rail system |
| Full AS/RS system (mid-scale) | $150,000 – $500,000 | 10,000–50,000 pallet positions, WMS integration |
| Advanced AI-enabled system | $500,000 – $2M+ | Large DCs, predictive slotting, energy optimization |
| Annual maintenance (per unit) | $1,500 – $5,000 | Software updates, inspections, parts |
| WMS integration (one-time) | $20,000 – $100,000 | Depends on existing system complexity |
These figures represent hardware only. Total project cost — including civil works, racking, conveyors, and commissioning — typically runs 2–3× the robot unit cost for mid-scale deployments.
7. ROI: when does automation pay off?
ROI accelerates when labor costs are high, warehouse space is expensive, or throughput requirements exceed manual capacity. Businesses processing fewer than 200 pallet moves per day may find leasing or a hybrid model more cost-effective than full AS/RS ownership.
Key drivers: Each percentage point of labor cost saved, and each square meter of reclaimed floor space, compounds over the system's 10–15 year lifespan. Request a site-specific ROI model from vendors before committing.
8. How to choose the right system for your warehouse
| Your situation | Recommended approach |
|---|---|
| Small warehouse, <500 pallets | Standard plastic pallets + manual racking |
| Mid-size DC, 500–5,000 pallets, food/pharma | HDPE rackable pallets + single-deep shuttle system |
| High-volume e-commerce, 5,000–50,000 pallets | Custom pallets + multi-deep AS/RS with WMS integration |
| Cold storage / freezer warehouse | HDPE pallets rated for −40 °C + cold-rated shuttle robots |
| Budget-constrained, scaling gradually | Start with plastic pallets; lease shuttle units; expand modularly |
Frequently asked questions
The three-runner closed-deck hygienic plastic pallet is a solid and durable packaging solution designed for general and especially food and medicine storage and transport. It’s made of virgin HDPE or PP, featuring a flat surface and even bottom for hygienic consideration, a reinforced configuration with steel cores for rack and shelf, and a steady loading capacity.
The six-runner closed-deck hygienic plastic pallet is a solid and durable packaging solution designed for general and especially food and medicine storage and transport. It’s made of virgin HDPE or PP, featuring a flat surface and even bottom for hygienic consideration, a reinforced configuration with steel cores for rack and shelf, and a steady loading capacity.
The three-runner single-sided plastic pallet is a solid and durable packaging solution designed for general and medium to heavy-duty cargo storage, transport and automated storage and retrieval system (AS/RS) use. It’s made of virgin HDPE or PP, featuring in robust structure, reinforced configuration with steel cores for rack and shelf, and a steady loading capacity.
The double-sided closed deck hygienic plastic pallet is a solid and durable packaging solution designed for general and especially food and medicine storage and transport. It’s made of virgin HDPE or PP, featuring a flat surface and even bottom for hygienic consideration, a reinforced configuration with steel cores for rack and shelf, and a steady loading capacity.
